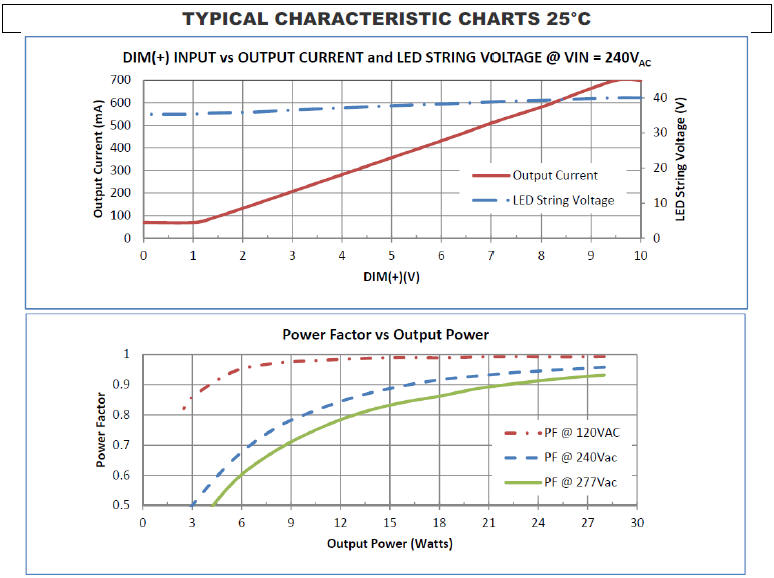

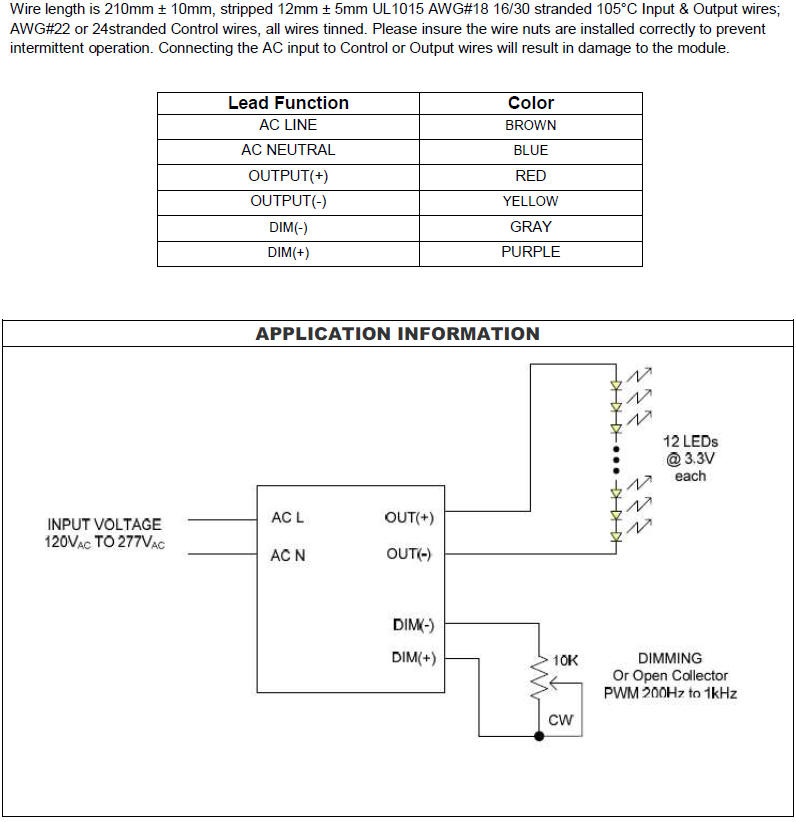

Description ELED-0700030-S is a highly reliable 30w solid-state LED lighting driver module with a galvanic isolated output. It is compliant to Energy Star for commercial, industrial and residential applications. It is compatible with 50Hz and 60Hz AC power sources worldwide with standard voltages ranging from 120VAC +/- 10% to 277VAC +/- 10%. The output is a 700mA dimmable constant currentsource. It complies with UL, CUL and CE standards for safety standards and EMC. Low voltage dimming control is available when using the dedicated dimming control input leads, DIM(+) and DIM(-). The amplitude of the output LED string current will vary from 10% to 100%corresponding to a 1VDC to 10VDC signal on DIM(+) input following IEC 60929 Annex E.2.3. A minimum dim level of 10% shall be obtained with DIM(+) input shorted to DIM(-). |
 |
|
Key Features • Energy Star Compliant • > 50k Hour Life at 60°C • Constant Current Output • 0 – 10VDC, PWM and POT Dimmable • Suitable for Damp Locations IP66 • Suitable for Plenum Locations • Isolated Output, SELV
|
• High efficiency/Cool Running • Universal AC Input • UL, CUL, and CE Standards E337545 • EU ROHS, REACH Compliant • Full Protection: OVP, SCP, OTP, Maximum Power Limit • Small Compact Size |
Applications Worldwide Residential and Commercial LED Lighting Fixtures such as:• LED Down Lights |
           |
|
